Overhead Beam Boat Lifts

Oldest most proven design, powered by two worm gear driven winches, allows you to raise your boat further out of the water which is especially important during adverse sea conditions. The tie in of the overhead beams to the pilings gives additional support to the lift systems, adding to the quality. Our overhead beam boat lift systems give strong support for your boat while giving a conventional look.

Specifications

Weight Capacity:
4,000 lbs. to 16,000 lbs.
Piling Diameter Requirement:
8 plus
Piling Height:
7 to 8 above deck
Each Motor:
GFCI protected.

Also check these lifts:
E-Drive Overhead Beam Boatlift
Aluminum Overhead Beam Boatlift

Boat Lift Features

  • Hot dipped galvanized steel construction
  • Stainless steel cables
  • Machined aluminum cable winders
  • Stainless and galvanized hardware
  • E-Drive or Flat Plate Drive (E-Drive piling configuration differs - see E-Drive Overhead Beam Boat Lifts)
  • Enclosed covers
  • Nylon, aluminum, or stainless sheaves
  • Adjustable bunk and guide post systems
  • Standard or custom design
east coast boat lifts

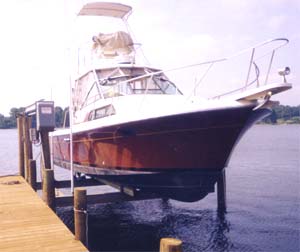

Overhead Beam Boat Lifts
Overhead Beam Boat Lifts

Overhead Beam Boat Lifts

east coast boat lifts



OVERHEAD BEAM SYSTEMS - PILING CONFIGURATION
OVERHEAD BEAM SYSTEMS - PILING CONFIGURATION
Lift
Capacity
Dimension
A - length
Dimension
B - width
Piling
Diameter
4,000 lbs
13'-11"
10'-0"
8" min
8,000 lbs
13'-11"
11'-0"
8" min
10,000 lbs
13'-11"
12'-0"
10"
12,000 lbs
13'-11"
12'-0"
10"
16,000 lbs
13'-11"
15'-0"
10"

Please check with East Coast Boat Lifts to confirm piling configurations as improvements and product modifications may cause piling specification to change.



east coast boat lifts
east coast boat lifts east coast boat lifts east coast boat lifts
east coast boat lifts
OVERHEAD BEAM SYSTEMS - SPECIFICATIONS
east coast boat lifts
east coast boat lifts east coast boat lifts east coast boat lifts
east coast boat lifts
Lift
Capacity
Upper
I-Beams
Cradles
I-Beams
Cable
Size
Guide
Post
Height
Bear-
ings
Drive
Shaft
Size
Cable
Winders
Diam.
Motor
Drive
Pulley
Hoist
Drive
Pulley
Hoist
Gear
Ratio
Motors
Travel
Speed
4,000
lbs
4 pilings
2 Each
W6x
12x14'5"
2 Each
W6x
12x10'
stainless
steel x 4
1/4x20'
straight
pull
80"
8x
1-15/16"
4-Bolt
Flange
1-15/16"
O.D.
Sch.40
Aluminum
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
2x
3/4hp
A.O.Smith
120v/12a
240v/6.1a
3.5 ft
per
minute
8,000
lbs
4 pilings
2 Each
W6x
12x14'5"
2 Each
W6x
12x11'
stainless
steel x 4
1/4x30'
double
cable
80"
8x
1-15/16"
4-Bolt
Flange
1-15/16"
O.D.
Sch.40
Aluminum
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
2x
3/4hp
A.O.Smith
120v/12a
240v/6.1a
2.1 ft
per
minute
10,000
lbs
4 pilings
2 Each
W6x
12x14'5"
2 Each
W6x
12x12'
stainless
steel x 4
5/16x30'
double
cable
80"
8x
1-15/16"
4-Bolt
Flange
1-15/16"
O.D.
Sch.40
Aluminum
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
8"
Diam.
96
to 1
2x
3/4hp
A.O.Smith
120v/12a
240v/6.1a
2.1 ft
per
minute
12,000
lbs
4 pilings
2 Each
W6x
12x14'5"
2 Each
W8x
15x12'
stainless
steel x 4
5/16x30'
double
cable
80"
8x
1-15/16"
4-Bolt
Flange
1-15/16"
O.D.
Sch.80
Aluminum
Pipe
2-3/8"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
10"
Diam.
96
to 1
2x
1 hp
A.O.Smith
120v/13.6a
240v/6.4a
2.1 ft
per
minute
16,000
lbs
4 pilings
2 Each
W6x
16x14'5"
2 Each
W8x
15x15'
stainless
steel x 4
3/8x30'
double
cable
80"
8x
1-15/16"
4-Bolt
Flange
1-15/16"
O.D.
Sch.80
Aluminum
Pipe
3"
O.D.
Sch.80
Aluminum
Pipe
2"
Diam.
10"
Diam.
96
to 1
2x
1 hp HD
A.O.Smith
120v/14a
240v/7a
2.1 ft
per
minute
