Eight Piling Boat Lifts
20,000 lbs Lifts
25,000 lbs Lifts
30,000 lbs Lifts

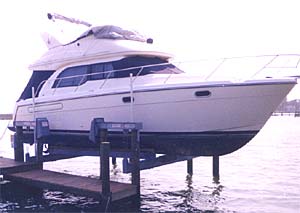

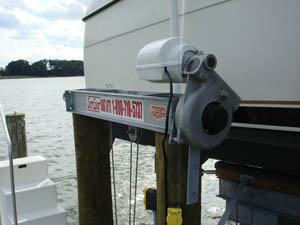

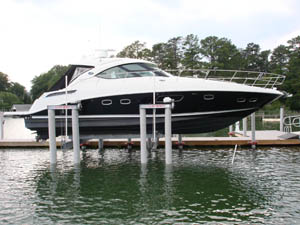

Eight piling boat lifts are a proven design to hoist large capacity boats. This 8-piling 4-motor unit can be used as overhead boat lift systems to raise boat further out of water during rough sea conditions or as an low profile which is more aesthetically pleasing. The lift is driven by worm gear driven electric winches. Design allows easy access to vessel. Carpeted bunks gently cradle your boat.

Specifications

Weight Capacity:
20,000 lbs, 25,000 lbs, and 30,000 lbs.
Piling Diameter Requirement:
12” plus
Piling Height:
Approx 48" above deck
Each Motor:
GFCI protected
totally enclosed
240v/7a electric motor available.

Boat Lift Features

Hot dipped galvanized steel construction
Stainless steel cables
Machined aluminum cable winders
Stainless and galvanized hardware
Aluminum or stainless sheaves
E-Drive or Flat Plate Drive
Enclosed covers
Adjustable bunk and guide post systems (for overhead or low profile lift options)
Remote control w/auto stop
Standard or custom design systems

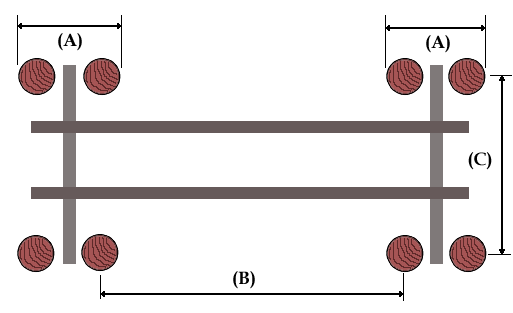

LARGE CAPACITY LIFT SYSTEMS - PILING CONFIGURATION

Lift Capacity	Dimension A - length	Dimension B - length	Dimension C - width	Piling Gap - D	Piling Diameter
20,000 lbs	18'-0"	11'-8"	15'-0"	3'-2"	10" min
25,000 lbs	17'-0"	10'-0"	15 to 17'	3'-6"	12" min
30,000 lbs	17'-0"	10'-0"	15 to 17'	3'-6"	12" min

LARGE CAPACITY LIFT SYSTEMS - SPECIFICATIONS

Lift
Capacity

Upper
Beams

Cradles
I-Beams

Cable
Size

Guide
Post
Height

Bear-
ings

Drive
Shaft
Size

Cable
Winders
Diam.

Motor
Drive
Pulley

Hoist
Drive
Pulley

Hoist
Gear
Ratio

Motors

Travel
Speed

20,000
lbs
8 pilings

4 each
W6x 16
x50"
I-Beams

2 each
W10x
19x15'

4 cables
3/8"x32'
stainless
steel
double
purchase

80"

8 each
1-15/16"
4-Bolt
Flange

1-15/16"
O.D.
Sch.160
Galv.
Pipe

3"
O.D.
Sch.80
Aluminum
Pipe

2"
Diam.

10"
Diam.

96
to 1

4x 1 hp
A.O.Smith
120v/14a
240v/7a

2.1 ft
per
minute

25,000
lbs
8 pilings

4 each
7x9.8
x54"
double
channel
power
beams

2 each
W10x
22x15-17'

4 cables
3/8"x45'
stainless
steel
w/thimble
triple
purchase

80"

8 each
2-7/16"
4-Bolt
Flange

2-7/16"
O.D.
Sch.80
Galv.
Pipe

3"
O.D.
Sch.80
Aluminum
Pipe

485
to 1

4x 1-1/2 hp
A.O.Smith
120v/14a
240v/7a

1.8 ft
per
minute

30,000
lbs
8 pilings

4 each
7x9.8
x54"
double
channel
power
beams

2 each
W10x
26x15-17'

4 cables
3/8"x45'
stainless
steel
w/thimble
triple
purchase

80"

8 each
2-7/16"
4-Bolt
Flange

2-7/16"
O.D.
Sch.80
Galv.
Pipe

3"
O.D.
Sch.80
Aluminum
Pipe

600
to 1

4x 1-1/2 hp
A.O.Smith
120v/14a
240v/7a

1.8 ft
per
minute
