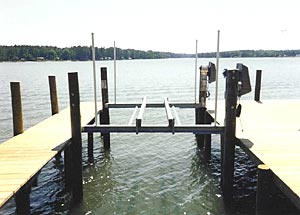

Low Profile Boat Lifts

The low profile boat lift systems we manufacture were designed to eliminate the upper or overhead beams and allow for easy access on and off your vessel, which are only inches away from your pier. Drive units are mounted on the pier side for easier service, and there is no underwater wiring. The two electric motor lift systems allows for easy leveling of boat, front to back. This is an aesthetically pleasing boat lift.

Specifications

Weight Capacity:
8,000 lbs. to 16,000 lbs.
Piling Diameter Requirement:
8” plus
Piling Height:
36" to 48" above deck
Each Motor:
GFCI protected
Totally enclosed
120v/12.1a or 240v/6a motors available.

Boat Lift Features

Hot dipped galvanized steel construction
Stainless steel cables
Stainless and galvanized hardware
E-Drive or Flat Plate Drive systems
Enclosed covers
Nylon or stainless sheaves
Adjustable bunk and guide post systems
Standard or custom design

LOW PROFILE SYSTEMS - PILING CONFIGURATION

Lift Capacity	Dimension A - length	Dimension B - width	Piling Diameter
8,000 lbs	11'-6"	13'-0"	8" min
10,000 lbs	11'-6"	13'-0"	10" min
12,000 lbs	11'-6"	13'-0"	10" min
16,000 lbs	12'-0"	15'-0"	10" min
Please check with East Coast Boat Lifts to confirm piling configurations as improvements and product modifications may cause piling specification to change.

LOW PROFILE FLAT PLATE SYSTEMS - SPECIFICATIONS

Lift Capacity	Cradles I-Beams	Drive Drums	Bear- ings	Drive Shaft Size	Cable Size	Guide Post Height	Motor Drive Pulley	Hoist Drive Pulley	Hoist Gear Ratio	Motors	Travel Speed
8,000 lbs 4 pilings	2 Each W6x 12x13'	2 each 8x11.5x27" channel	4- 1-15/16" 4-Bolt Flange	2-3/8" O.D. Sch.80 Galv. Pipe	2 cables 1/4"x30' ss w/thimble, 2 cables 1/4x50' ss	96"	2" Diam.	6" Diam.	96 to 1	2 x 3/4hp A.O.Smith 120v/12a 240v/6.1a	2.1 ft per minute
10,000 lbs 4 pilings	2 Each W6x 16x13'	2 each 8x11.5x27" channel	4- 1-15/16" 4-Bolt Flange	2-3/8" O.D. Sch.80 Galv. Pipe	2 cables 5/16"x30' ss w/thimble, 2 cables 5/16x50' ss	96"	2" Diam.	6" Diam.	96 to 1	2 x 3/4hp A.O.Smith 120v/12a 240v/6.1a	2.1 ft per minute
12,000 lbs 4 pilings	2 Each W8x 15x13'	2 each 8x11.5x27" channel	4- 1-15/16" 4-Bolt Flange	2-3/8" O.D. Sch.80 Galv. Pipe	2 cables 5/16"x30' ss w/thimble, 2 cables 5/16x50' ss	96"	2" Diam.	8" Diam.	96 to 1	2 x 1 hp A.O.Smith 120v/13.6a 240v/6.4a	1.8 ft per minute
16,000 lbs 4 pilings	2 Each W8x 15x15'	2 each 10x15.3x27" channel	4- 1-15/16" 4-Bolt Flange	2-3/8" O.D. Sch.80 Galv. Pipe	2 cables 5/16"x46' ss w/thimble, 2 cables 5/16x64' ss	120"	2" Diam.	8" Diam.	96 to 1	2 x 1 hp A.O.Smith 120v/13.6a 240v/6.4a	1.5 ft per minute
