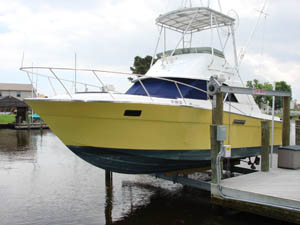

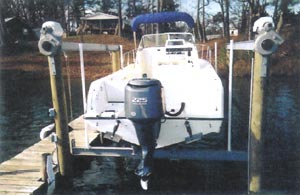

Oldest most proven design, high profile design allows you to raise your boat further out of the water in rough sea conditions. Overhead beams tie into piling for better support. Powered by 2 E-Drive low maintenance hoist units.

Specifications

Weight Capacity:
8,000 lbs. to 20,000 lbs.
Piling Diameter Requirement:
8” plus
Piling Height:
7’ to 8’ above deck
Each Motor:
GFCI protected

Boat Lift Features

Stainless steel cables
Machined aluminum cable winders
E-Drive low-maintenance systems
Enclosed covers
Stainless steel and galvanized hardware
Aluminum or stainless sheaves
Adjustable bunk and guide post systems

Ovhd Beam E-Drive

Ovhd Beam E-Drive

E-DRIVE OVERHEAD BEAM SYSTEMS - PILING CONFIGURATION

Lift Capacity	Dimension A - length	Dimension B - width	Piling Diameter
8,000 lbs	13'-11"	11'-0"	8" min
10,000 lbs	13'-11"	12'-0"	10"
12,000 lbs	13'-11"	12'-0"	10"
16,000 lbs	13'-11"	15'-0"	10"
20,000 lbs	14'-6"	15'-0"	10"
Please check with East Coast Boat Lifts to confirm piling configurations as improvements and product modifications may cause piling specification to change.

OVERHEAD BEAM WITH E-DRIVE SYSTEMS - SPECIFICATIONS

Lift Capacity	Top Rail Channels	Cradles I-Beams	Cable Size	Guide Post Height	Bear- ings	Drive Shaft Size	Cable Winders Diam.	Hoist Gear Ratio	Motors	Travel Speed
8,000 lbs 4 pilings	6" double channel 13'-11"	2 each W6x12 x11'	stainless steel 4x 1/4x30' double cable	80"	8x 1-5/16" 4 bolt flange	1-15/16" O.D. Sch.40 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	384 to 1	2x 3/4hp A.O.Smith 120v/12a 240v/6.1a	2 ft per minute
10,000 lbs 4 pilings	6" double channel 13'-11"	2 each W6x12 x12'	stainless steel 4x 5/16x30' double cable	80"	8x 1-5/16" 4 bolt flange	1-15/16" O.D. Sch.40 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	384 to 1	2x 3/4hp A.O.Smith 120v/12a 140v/6.1a	2 ft per minute
12,000 lbs 4 pilings	6" double channel 13'-11"	2 each W8x13 x12'	stainless steel 4x 5/16x30' double cable	120"	8x 1-5/16" 4 bolt flange	1-15/16" O.D. Sch.80 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	384 to 1	2x 1 hp A.O.Smith 120v/13.6a 240v/6.4a	2 ft per minute
16,000 lbs 4 pilings	6" double channel 13'-11"	2 each W8x15 x15'	stainless steel 4x 3/8x30' double cable	120"	8x 1-5/16" 4 bolt flange	1-15/16" O.D. Sch.80 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	480 to 1	2x 1.5 hp A.O.Smith 120v/22a 240v/11a	2 ft per minute
20,000 lbs 4 pilings	7" double channel 14'-6"	2 each W10 x 19 x 15'	stainless steel 4x 5/16" x 51' double cable	120"	8x 1-5/16" 4 bolt flange	1-15/16" O.D. Sch.80 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	600 to 1	2x 1.5 hp A.O.Smith 120v/22a 240v/11a	1.5 ft per minute
