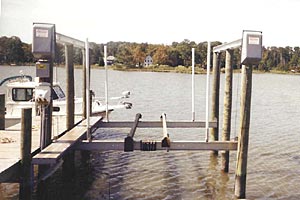

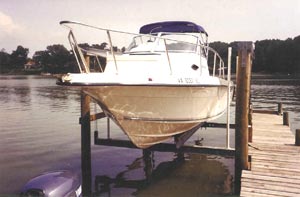

Aluminum Overhead Lifts

Oldest most proven design, high profile design allows you to raise your boat further out of the water in rough sea conditions. Overhead beams tie into piling for better support. Powered by 2- worm gear driven winches.

Using an aluminum overhead boat lift is a great way to protect your boat from wind, water, and weather damages. It will also increase the longevity of your boat’s life. Consider this an investment.

Specifications

Weight Capacity:
5,000 lbs. to 12,000 lbs.
Piling Diameter Requirement:
8” plus
Piling Height:
7’ to 8’ above deck
Each Motor:
GFCI protected
120v/12.1a or 240v/6a.

Also check these lifts:
Regular Overhead Beam
E-Drive Overhead Beam

Boat Lift Features

Marine grade aluminum construction
Stainless steel cables
Machined aluminum cable winders
E-Drive or Flat Plate Drive
Enclosed covers
Stainless steel hardware
Aluminum or stainless sheaves
Adjustable bunk and guide post systems

OVERHEAD BEAM SYSTEMS - PILING CONFIGURATION

Lift Capacity	Dimension A - length	Dimension B - width	Piling Diameter
5,000 lbs	12'-6"	11'-0"	8" min
8,000 lbs	12'-6"	12'-6"	8" min
10,000 lbs	12'-6"	12'-6"	10" min
12,000 lbs	12'-6"	12'-6"	10" min

OVERHEAD BEAM SYSTEMS - SPECIFICATIONS

Lift Capacity	Top Rail Channels	Cradles I-Beams	Cable Size	Guide Post Height	Bear- ings	Drive Shaft Size	Cable Winders Diam.	Hoist Gear Ratio	Motors	Travel Speed
5,000 lbs 4 pilings	5"x2.25 x.15/.26 double channel	6x4 x.35/.21	stainless steel 4x 5/16x20' straight pull	80"	8x 2"x3"x5" aluminum bearing block	1-15/16" O.D. Sch.40 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	384 to 1	2x 3/4hp A.O.Smith 120v/12a 240v/6.1a	2.1 ft per minute
8,000 lbs 4 pilings	5"x2.25 x.15/.26 double channel	6x4 x.35/.21	stainless steel 4x 5/16x30' double purchase	80"	8x 2"x3"x5" aluminum bearing block	1-15/16" O.D. Sch.40 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	384 to 1	2x 3/4hp A.O.Smith 120v/12a 140v/6.1a	2.1 ft per minute
10,000 lbs 4 pilings	6"x2.5 x.17/.29 double channel	8x5 x.35/.23	stainless steel 4x 5/16x30' double purchase	80"	8x 2"x3"x5" aluminum bearing block	1-15/16" O.D. Sch.40 Galv. Pipe	2-3/8" O.D. Sch.80 Aluminum Pipe	384 to 1	2x 1 hp A.O.Smith 120v/13.6a 240v/6.4a	2.1 ft per minute
12,000 lbs 4 pilings	7"x2.75 x.17/.29 double channel	8x5 x.41/.25	stainless steel 4x 5/16x30' double purchase	80"	8x 2"x3"x5" aluminum bearing block	1-15/16" O.D. Sch.80 Galv. Pipe	3" O.D. Sch.80 Aluminum Pipe	384 to 1	2x 1.5 hp A.O.Smith 120v/14a 240v/7a	2.1 ft per minute
